BH iLYNX+ DL Trail 7.9
BH iLYNX+ DL Trail 7.9

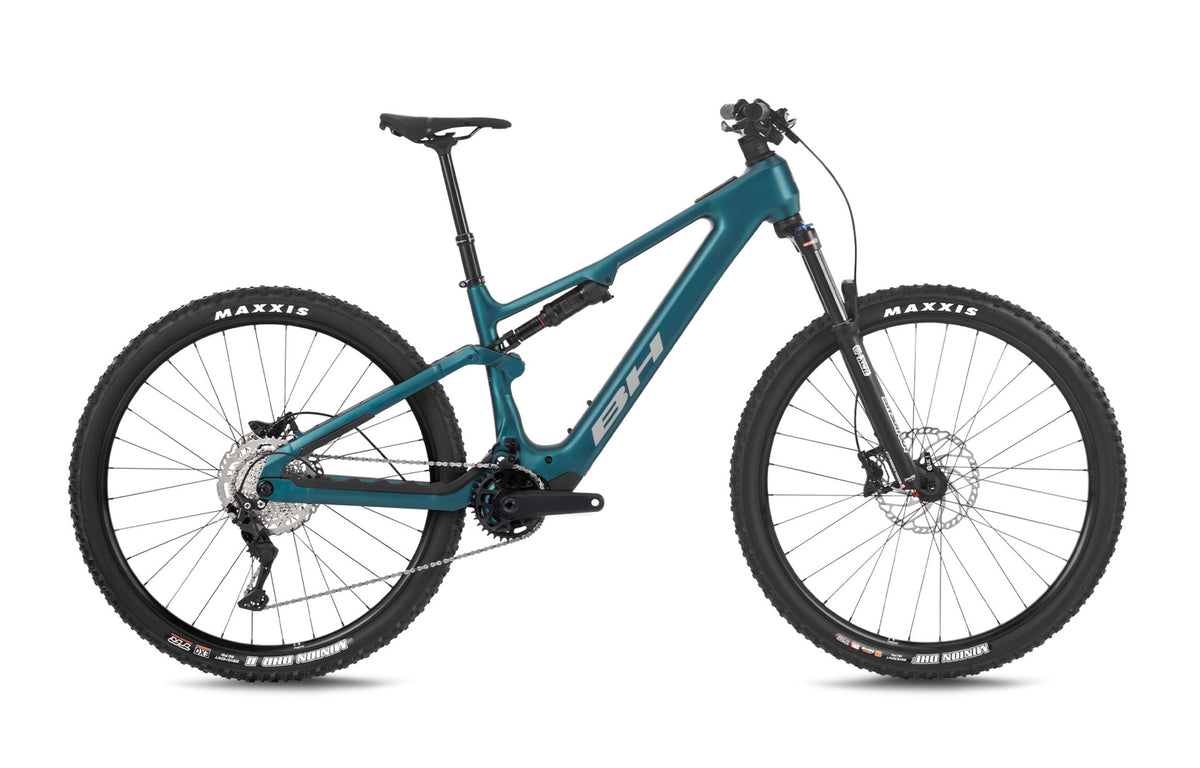

The BH iLYNX+ DL Trail 7.9 is a high-performance full-suspension electric mountain bike engineered for serious trail enthusiasts. Built to conquer demanding terrain, technical climbs and rapid descents, this machine pairs aggressive 29-inch geometry with cutting-edge suspension technology.
Powered by the Avinox M2 mid-drive motor delivering 125Nm of torque and 1100W peak power in Turbo mode, the iLYNX+ DL provides responsive assistance on steep pitches and technical sections. The 800Wh integrated battery grants impressive range up to 157km, ideal for extended rides and full days exploring trails.
The aluminium frame combines an SR Suntour XCR34 Air fork with 140mm travel and RockShox Deluxe DebonAir rear shock, ensuring traction, comfort and control on rough ground. Shimano MT420 four-piston hydraulic disc brakes with 203mm rotors deliver dependable stopping power on demanding descents.

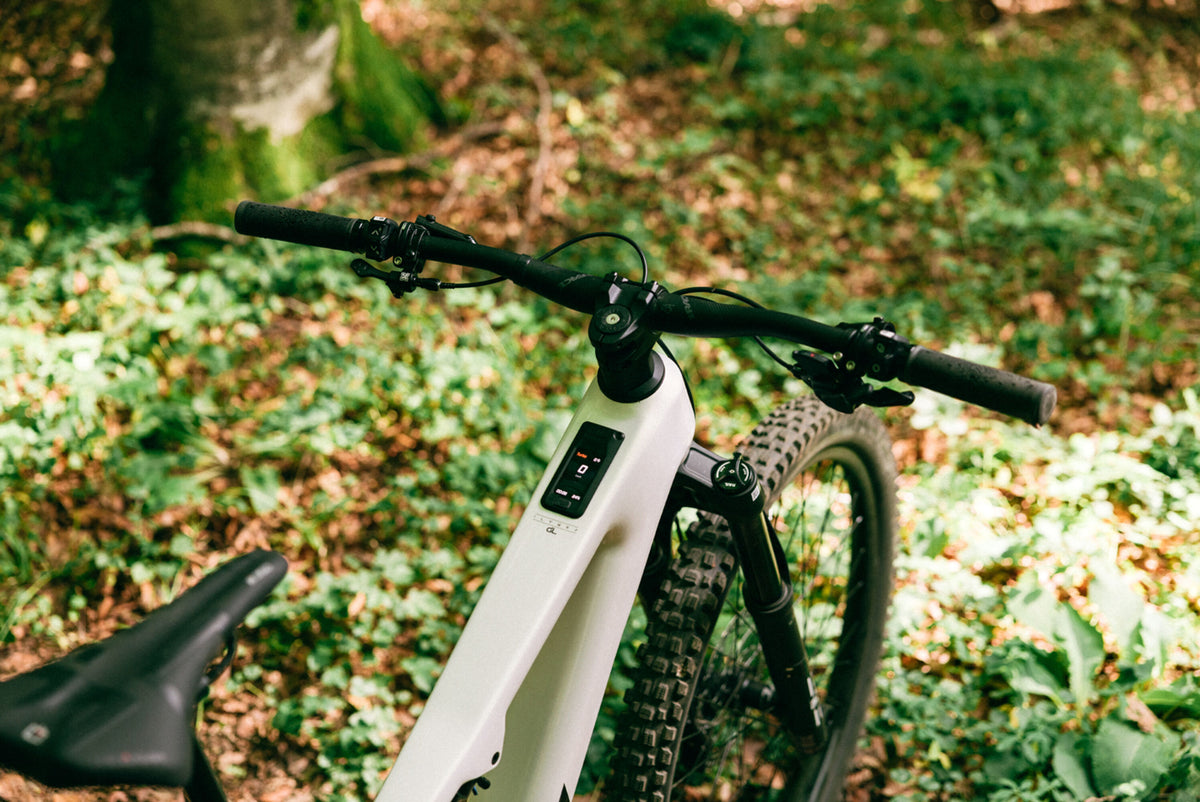

Fitted with a Shimano Deore 10-speed drivetrain for reliable shifting, the bike features an integrated 2-inch OLED touchscreen display with wireless handlebar controllers, keeping your cockpit clean and riding data within easy reach.
Key Features:
| Frame |

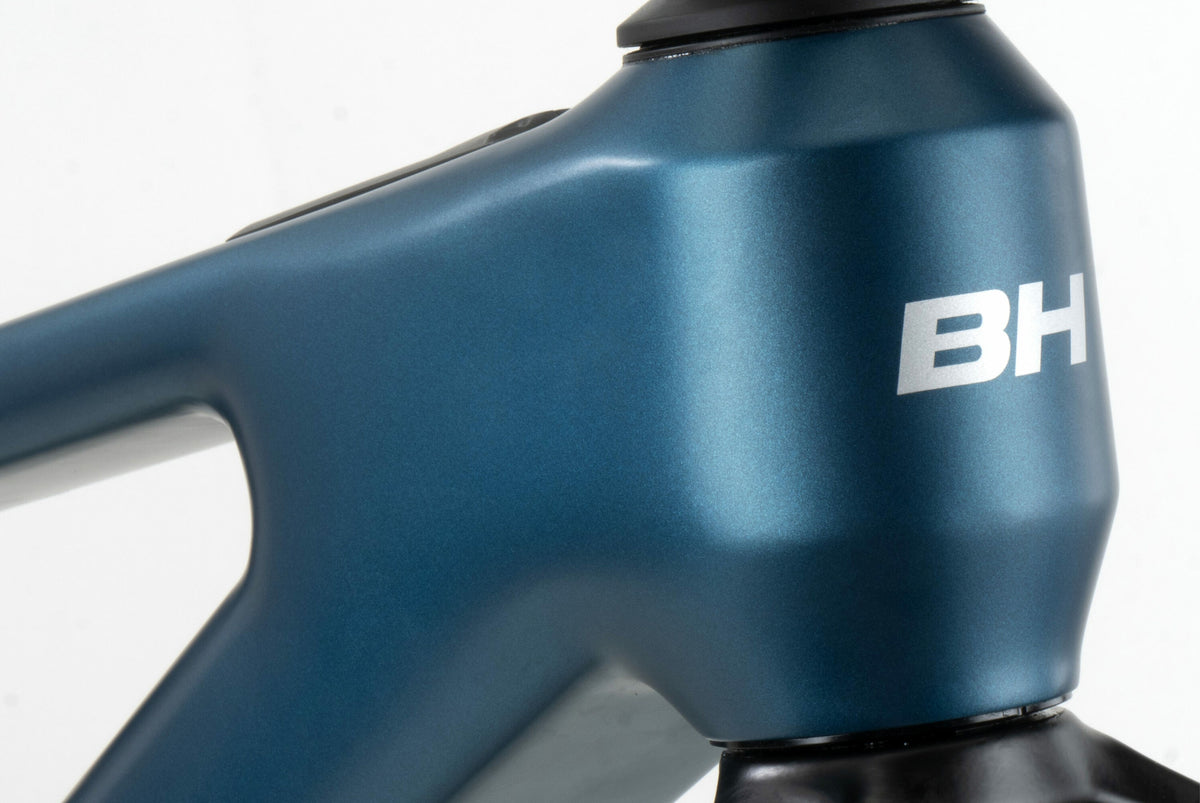

Frame iLynx+DL, 150 mm Full Suspension 29", Alloy, ICR
|
Rear shock Rock Shox Deluxe Debonair
|
Fork SR Suntour XCR34 Air 140mm 15QR
|
||
| Drivetrain |
Shift levers Shimano Deore
|
Rear derailleur Shimano Deore 10sp
|
Crank set EThirteen 34T 160mm
|
Cassete Shimano CSM4100 10sp (1146T)
|
Chain Shimano HG54
|
| Brakes |
Front brake Shimano MT420 4 Piston 203mm
|
Rear brake Shimano MT420 4 Piston 203mm
|
|||
| Wheelset |
Wheelset BH Lite Mach1 Trucky 30
|
Tires Maxxis Minion TPI120 Terra EXO TR 29"X2,5/2,4
|
Hubs BH
|
Spokes Stainless Steel
|
|
| Seat |
Saddle Prologo Proxim W350 Stn
|
Seat clamp Alloy
|
Seatpost XFusion Manic TA 31,6
|
||
| Cockpit |
Handlebar BH MTB SLite Alloy Riser 780mm
|
Stem Satori URSA 35
|
Headset Acros AIX287 ICR BL.
|
Grips BH Ergonomic
|
|
| ACCESSORIES |
Chainstay protector Double Integrated
|
||||
| TECHNOLOGY |
System Non Removable
|
Battery 800Wh
|
Motor Avinox M2
|
Display Avinox DCP100 +Wireles Rem
|
We reserve the right to change product information and components on this website without prior notice, including equipment, specifications, models, colours and materials.
